Czujnik poziomu cieczy Aquato

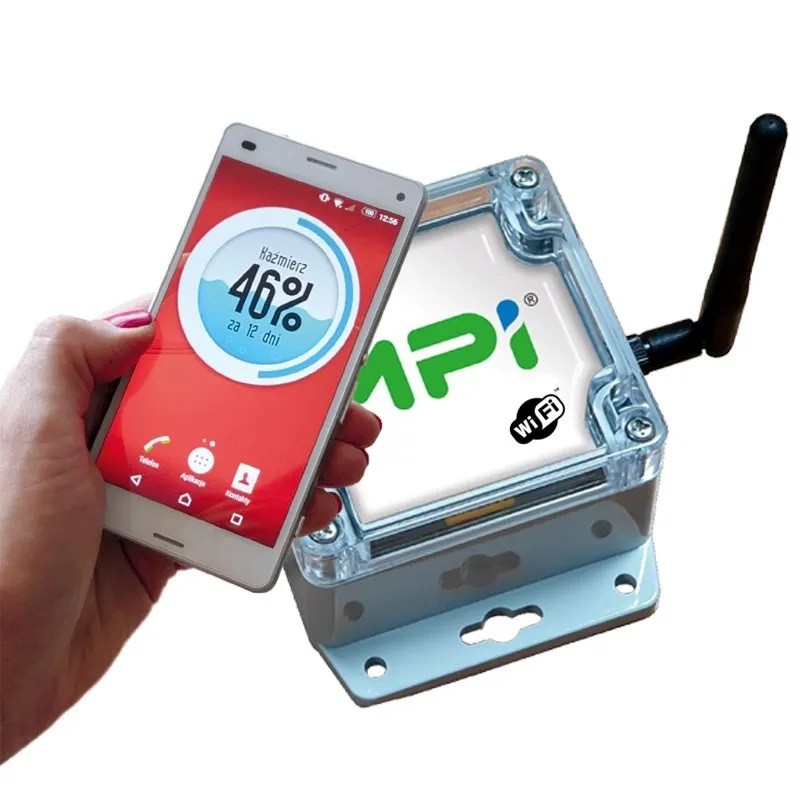

An innovative device for monitoring liquid levels in open-top tanks, using WiFi.

The AQUATO sensor is primarily used in rainwater tanks and domestic septic tanks. It communicates via WiFi using the most popular 802.11 b/g/n 2.4 GHz standard, which is used in virtually all home wireless networks.

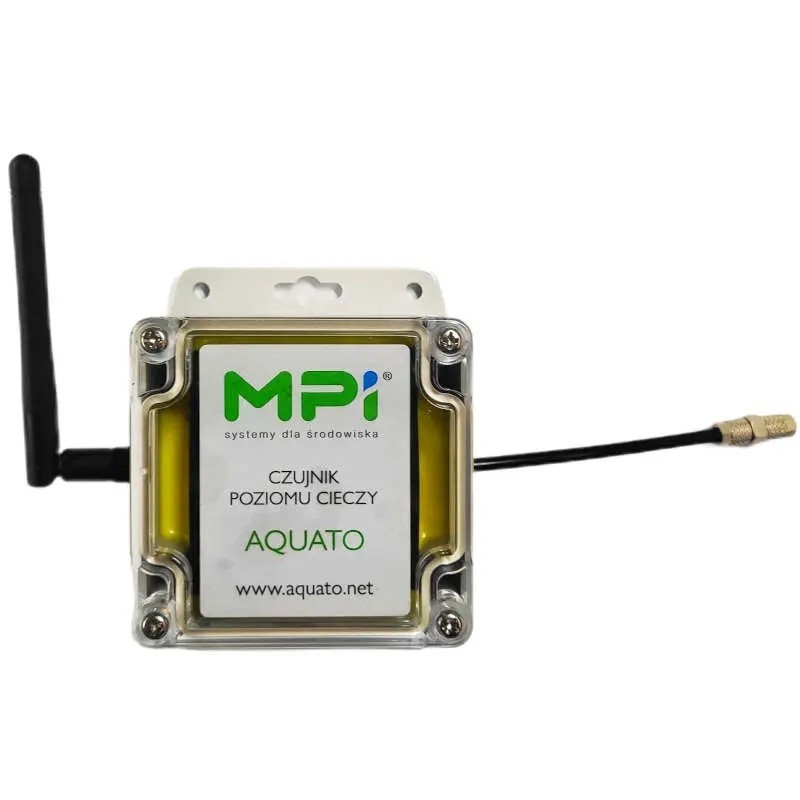

The range between the controller and the home WiFi depends on many variables. It depends on the router's power on the project site, obstacles and barriers in the sensor's signal path, etc. An antenna can be purchased to enhance the signal. Such devices are available in popular electronics stores. Kit components: The device consists of a microcontroller and a depth probe, which are connected by a thin tube.

Additionally, the device is equipped with a temperature sensor, allowing the user to monitor the temperature in the device's surroundings. It can be installed indoors or outdoors, as it has been designed to withstand the external atmospheric conditions found in our climate.

The device does not require a power cable, as it is powered by four standard AA batteries.

This solution ensures uninterrupted operation for almost four years. The power supply is monitored by the device itself and can determine the battery discharge level. The cable between the "box" and the probe is 8 m long.

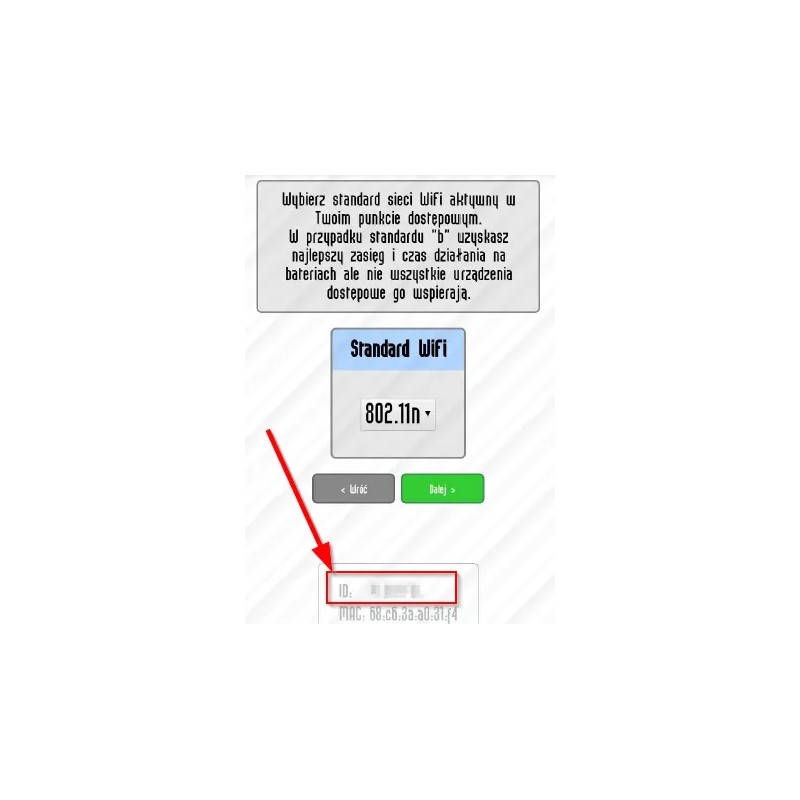

This cable cannot be extended; it is an empty tube. The device ID number, required for registration, can be found on the screen during Wi-Fi network configuration.
