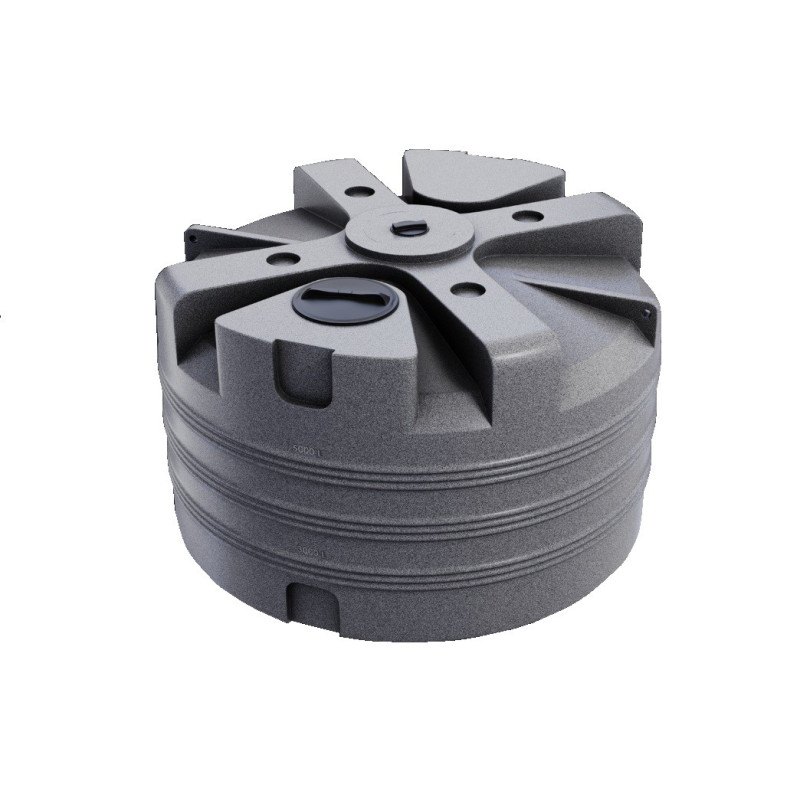

The V-5000F is a reliable flat tank made of high-quality polyethylene, designed specifically for stationary storage of drinking water, rainwater and other liquids with a density of up to 1.05 g/cm³. Ideal for both farms and industrial applications.
Note! By default, there is no threaded hole. It can be installed when the customer orders (they are closed in the original state). The nozzle assembly instructions can be downloaded in the attachments section.
THE POSSIBILITY OF RETURNING THE PRODUCT WITH AN ADDITIONAL CONNECTION (ORDERED BY THE CUSTOMER) WILL NOT BE POSSIBLE.
Advantages of the V-5000F:
• Maximum strength: the structure is reinforced with nine stiffening rings and additional ribs on the top for stability and safety.
• Convenient access and ventilation: two lids with air valves provide access and ventilation, preventing excessive pressure. A third lid can be installed on request.

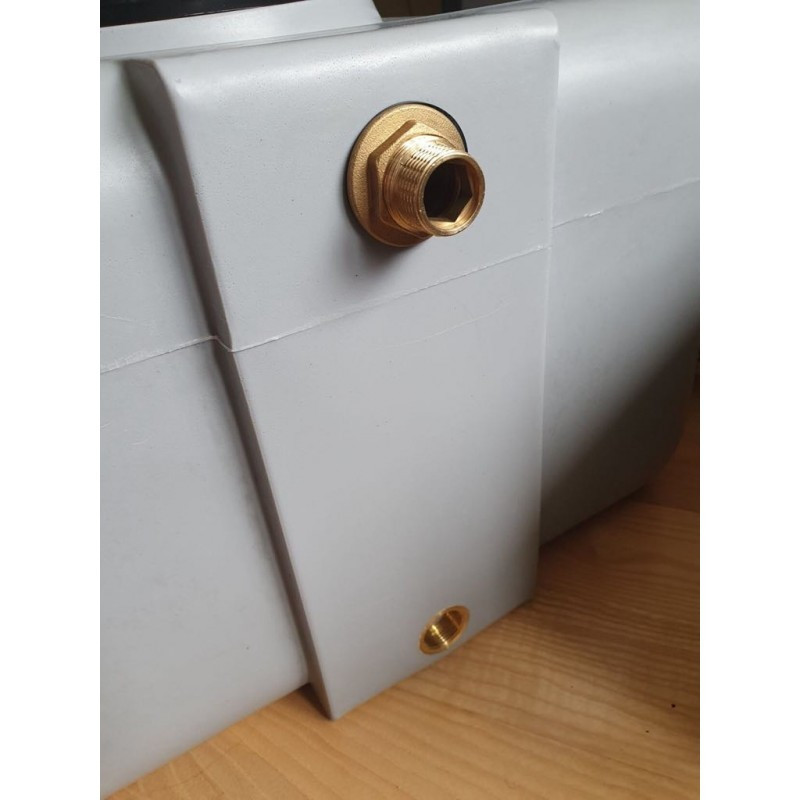

• Possibility of adding a connector: on request, the tank can be equipped with additional connectors for easy connection of various systems.
• Reinforcement and ease of use: the rings on the top of the container act as structural reinforcements and can be used as handles for lifting, transporting and positioning the empty tank.
• Resistance: the tank is resistant to UV radiation, corrosion and extreme weather conditions, maintaining its appearance and properties for many years.
• Full safety and certification: the material has a Polish hygiene certificate PZH, allowing contact with drinking water.
Note! The presence of condensed water in the tank is permissible.
Characteristic features: Capacity: 5000 l
Height: 143 cm
Diameter: 230 cm
Inlet diameter: 14 cm and 35 cm
Wall thickness: 7 mm
Connection thread: -
Material: -High quality polyethylene of high strength -Frost resistant (-40°C to +60°C) -suitable for storing food liquids -resistant to UV radiation
Description
1. Purpose of the products
The containers are made of virgin polyethylene in accordance with TU U 25.2-33458437-003: 2007 POLYETHYLENE CONTAINERS.
The containers are reusable, used for STATIONARY storage of liquid and loose products (including food and drinking water).
Polyethylene is resistant to UV radiation.
V60, V130, V200 containers have a tight lid, thanks to which they can be additionally used to transport liquid and loose products. Transport only in an upright position, without stacking, and the transport speed should not exceed 60 km/h. When transporting partially filled containers, it is necessary to reduce the speed on bends, ascents and descents.
ATTENTION!!! Tanks can be operated at temperatures from -30oС to +60oС,
If the temperature affecting them leads to a chemical or physical interaction of the stored substances with the material of the container, which may lead to the destruction of the container or change in the chemical composition of the substance (e.g. destruction of the container due to freezing of the substance, unsealing of the container, evaporation of the liquid, etc.), then these cases are not covered by the Manufacturer's Warranty.
Tanks are not designed to be installed in the ground.
2. Storage, loading, transport.
Tanks should be stored in the temperature range from -30 o C to +60 o C on a flat, compact surface, with an area that ensures its stable position. Storage conditions should exclude the penetration of aggressive substances into the surface of the tanks and the ingress of moisture inside the products. In the case of long-term storage, direct sunlight on the products must be excluded. The loading and unloading operation is carried out with empty containers, manually or using a forklift. Transport of empty containers is allowed by any type of transport with the required load capacity and dimensions of the loading platform. The transport position of the tank must be agreed with the Manufacturer. Tanks must be secured, excluding the possibility of their movement during transport.
3. Installation and connection.
The tank should be installed on a flat surface that is designed for the appropriate load (weight of the filled container). Deviations from the horizontal coating in the longitudinal and transverse directions - no more than 3 mm per meter of length. Permitted depressions and protuberances not exceeding 3 mm. The container before starting work must be carefully inspected for defects that affect its operation. If they are detected, the Manufacturer should be informed in order to eliminate the defects. When installing on a foundation, check the correct position of the liquid inlet and outlet. When using the tanks V60, V130, V200 for transport in a filled state, it is necessary to fix the tank with straps (not included in the delivery set) and provide stops that prevent the tank from moving during movement. The restrictors must be in contact with the tank through damping pads to prevent damage to the tank.
4. Use of containers in operation.
Before the first use of the container, as well as after repeated use, the container should be washed with a solution of baking soda with the addition of any disinfectant, and then rinsed with water. After the procedure - drain the water. All elements of the tank, including the lid, are not a load-bearing structure, therefore, during operation, it is forbidden to apply additional forces affecting the product and the lid (when cleaning the tank, use ladders and platforms for getting down and up, if necessary).
ATTENTION!!! Do not use pressurized containers.
